AGSImageServiceLayer Class Reference

Description

An instance of this class allows you to display maps from an image service of ArcGIS Server. For example: http://sampleserver3.arcgisonline.com/ArcGIS/rest/services/World/MODIS/ImageServer.

In a Model-View-Controller architecture, this object represents the Model. The corresponding View object, AGSDynamicLayerView, is created when this layer is added to the map.

Defined in:
AGSImageServiceLayer.h (ArcGIS library)
Since:
1.0

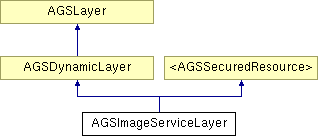

Inheritance diagram for AGSImageServiceLayer:
AGSDynamicLayer <AGSSecuredResource> AGSLayer

List of all members.

Public Member Functions

(void) - dataChanged
(NSOperation
< AGSDynamicLayerDrawingOperation > *) 		- exportMapImage:
(id) - initWithURL:
(id) - initWithURL:credential:
(void) - layerDidFailToLoad:
(void) - layerDidLoad
(void) - resubmitWithURL:credential:

Static Public Member Functions

(id) + imageServiceLayerWithURL:
(id) + imageServiceLayerWithURL:credential:

Properties

NSArray * bandIds
NSUInteger * compressionQuality
AGSCredential * credential
id< AGSLayerDelegate > delegate
NSError * error
id< AGSExportMapImageDelegate > exportDelegate
AGSEnvelope * fullEnvelope
AGSImageServiceInfo * imageServiceInfo
AGSEnvelope * initialEnvelope
BOOL loaded
double maxScale
double minScale
AGSSpatialReference * spatialReference
BOOL timeAware
AGSUnits units
NSURL * URL

Member Function Documentation

- (void) dataChanged

This method tells the layer that the data has changed and it should be redrawn.

Since:
1.0

Implemented in AGSGraphicsLayer.

- (NSOperation<AGSDynamicLayerDrawingOperation>*) exportMapImage: (AGSExportImageParams *)  params

Get new map image. The exportDelegate is notified when the image is exported. This method must be implemented by subclasses.

Parameters:
params The input parameters for the export image operation.
Since:
1.0
+ (id) imageServiceLayerWithURL: (NSURL *)  url

A method to get an initalized and autoreleased layer using a URL to an ArcGIS Server image service.

Parameters:
url URL pointing to an image service.
Returns:
A new, autoreleased, image service layer.
Since:
1.0
+ (id) imageServiceLayerWithURL: (NSURL *)  url
credential: (AGSCredential *)  cred

A method to get an initalized and autoreleased layer using a credential and URL to an ArcGIS Server image service.

Parameters:
url URL pointing to an image service.
cred AGSCredential used to access secure service.
Returns:
A new, autoreleased, image service layer.
Since:
1.0
- (id) initWithURL: (NSURL *)  url

Initalize this layer with a URL to an ArcGIS Server image service.

Parameters:
url URL pointing to an image service.
Returns:
A new, initialized, image serivce layer.
Since:
1.0
- (id) initWithURL: (NSURL *)  url
credential: (AGSCredential *)  cred

Initalize this layer with a credential and URL to an ArcGIS Server image service.

Parameters:
url URL pointing to an image service.
cred AGSCredential used to access secure service.
Returns:
A new, initialized, image serivce layer.
Since:
1.0
- (void) layerDidFailToLoad: (NSError *)  error

Method to notify the delegate that a layer failed to load. This method will also post a "LayerFailedToLoad" notification that can be observed by the developer.

Parameters:
error Information regarding the cause of the layer failing to load.
Since:
1.0
- (void) layerDidLoad

Method to notify the delegate that a layer successfully loaded. This method will also post a "LayerDidLoad" notification that can be observed by the developer.

Since:
1.0
- (void) resubmitWithURL: (NSURL *)  url
credential: (AGSCredential *)  cred

If the layer failed to load with a specific url and credential, you can resubmit it with a new URL and credential. This function does nothing if the layer is already loaded. This function also does nothing if the layer is currently trying to load.

Parameters:
url URL pointing to an image service.
cred AGSCredential used to access the secured resource.
Since:
1.0

Property Documentation

- (NSArray*) bandIds [read, write, assign]

The IDs of bands which are to be included in the map. The map can contain 1 band for gray scale images, or 3 bands for color images. The band IDs are numbered from 0 to the AGSImageServiceInfo bandCount property - 1.

Since:
1.0
- (NSUInteger*) compressionQuality [read, write, assign]

The compression quality of maps generated by the image service. The value can be between 0 - 100.

  • A value of 0 means maximum compression (lowest quality)
  • A value of 100 means minimum compression (highest quality)
Since:
1.0
- (AGSCredential*) credential [read, copy]

The credential to be used to access secured resources.

Since:
1.0

Reimplemented from <AGSSecuredResource>.

- (id<AGSLayerDelegate>) delegate [read, write, assign, inherited]

Delegate to be notified when the layer is loaded or fails to load. When this layer is loaded, a corresponding AGSLayerView object is automatically set as the delegate. This delegate must not be replaced.

Since:
1.0
- (NSError*) error [read, retain, inherited]

Information about the error associated with a layer.

Since:
1.0
- (id<AGSExportMapImageDelegate>) exportDelegate [read, write, assign, inherited]

Delegate to be notified of events related to exporting the map image. When this layer is loaded, a corresponding View object is automatically set as the exportDelegate which should not be replaced.

Since:
1.0
- (AGSEnvelope*) fullEnvelope [read, assign, inherited]

Full extent of the layer.

Since:
1.0

Implemented in AGSBingMapLayer, AGSGPResultLayer, and AGSOpenStreetMapLayer.

- (AGSImageServiceInfo*) imageServiceInfo [read, retain]

Information about the image service.

Since:
1.0
- (AGSEnvelope*) initialEnvelope [read, assign, inherited]

Initial extent of the layer.

Since:
1.0

Implemented in AGSBingMapLayer, AGSGPResultLayer, AGSGraphicsLayer, and AGSOpenStreetMapLayer.

- (BOOL) loaded [read, assign, inherited]

A property indicating whether the layer is loaded and ready to be used. When the layer is loaded, the value becomes YES, and layer properties can be accessed.

Since:
1.0
See also:
AGSLayerDelegate
- (double) maxScale [read, assign, inherited]

The maximum scale of the layer.

Since:
1.0

Implemented in AGSGraphicsLayer.

- (double) minScale [read, assign, inherited]

The minimum scale of the layer.

Since:
1.0

Implemented in AGSGraphicsLayer.

- (AGSSpatialReference*) spatialReference [read, assign, inherited]

The spatial reference of the layer.

Since:
1.0

Implemented in AGSBingMapLayer, AGSGPResultLayer, and AGSOpenStreetMapLayer.

- (BOOL) timeAware [read, assign, inherited]

A property indicating whether the layer is time-aware.

Since:
1.0
- (AGSUnits) units [read, write, assign, inherited]

The units the layer is in. Possible values include

  • AGSUnitsCentimeters
  • AGSUnitsDecimalDegrees
  • AGSUnitsDecimeters
  • AGSUnitsFeet
  • AGSUnitsInches
  • AGSUnitsKilometers
  • AGSUnitsMeters
  • AGSUnitsMiles
  • AGSUnitsMillimeters
  • AGSUnitsNauticalMiles
  • AGSUnitsPoints
  • AGSUnitsUnknown
  • AGSUnitsYards
Since:
1.0
- (NSURL*) URL [read, retain]

URL of the image service resource in the ArcGIS Server REST Services Directory.

Since:
1.0
