Returns legend information, such as layer name, group heading, classification labels and symbol swatches, for layers in a map.
GetLegendInfo(string MapName, int[] LayerIDs, MapServerLegendPatch LegendPatch, ImageType ImageType)
|
Parameter |
Description |
|
MapName |
The name of the map (data frame) that will be used to generate legend info.
|
|
LayerIDs |
An array of layer ids for which legend information will be returned. If empty or null, all layers will be included.
|
|
LegendPatch |
A MapServerLegendPatch used to define symbol swatch properties for legend classifications. If empty or null, the default patch properties defined in the map will be used.
|
|
ImageType |
An ImageType defines the image type and method for returning the image content for the symbol swatches. Supported image types are 'bmp', 'jpg', 'tif', 'png'/'png8', 'png24', 'emf', 'ps', 'pdf', 'ai', 'gif', and 'svg'/'svgz'. Image content can be returned as a URL or as a MIME data stream.
|
Return Value
An array of MapServerLegendInfo
objects. One MapServerLegendInfo object is returned
for each layer specified in the method call. Group
layers in a map service are not recognized.
Remarks
A map service does not have the ability to generate a single legend image will all legend content. Instead, the GetLegendInfo() method provides access to legend content which can be used to construct a single consolidated legend.

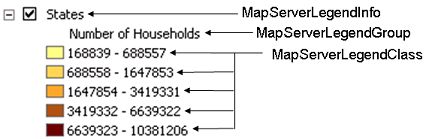

Each MapServerLegendInfo object contains one
or more MapServerLegendGroup objects. Each MapServerLegendGroup
object contains one or more MapServerLegendClass objects. The
relationship between value objects and legend content is illustrated in
the following diagram. Note that each MapServerLegendClass
contains a classification label and symbol swatch.
