Public Overloads Sub ZoomToResolution( _
   ByVal resolution As Double, _
   ByVal center As MapPoint _
)

public void ZoomToResolution(
   double resolution,
   MapPoint center
)

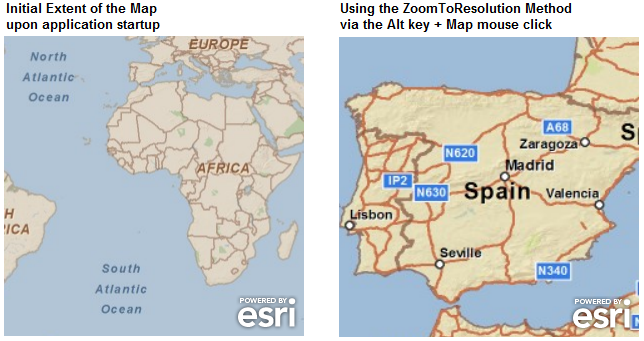

// This example demonstrates how to zoom in and center the map when the user clicks the mouse with the Alt key
// being depressed at the same time. The map zooms in by a factor of 10 from its current map resolution.

public MainPage()
{
  InitializeComponent();
  this.Loaded += new RoutedEventHandler(MainPage_Loaded);
  Map1.MouseClick +=new EventHandler<ESRI.ArcGIS.Client.Map.MouseEventArgs>(Map1_MouseClick);
}

void MainPage_Loaded(object sender, RoutedEventArgs e)
{
  // Clear out any existing layers.
  Map1.Layers.Clear();

  // Add an ArcGISTiledMapsServiceLayer to the Map.
  ESRI.ArcGIS.Client.ArcGISTiledMapServiceLayer myArcGISTiledMapServiceLayer = new ESRI.ArcGIS.Client.ArcGISTiledMapServiceLayer();
  myArcGISTiledMapServiceLayer.Url = "http://services.arcgisonline.com/ArcGIS/rest/services/ESRI_StreetMap_World_2D/MapServer";
  Map1.Layers.Add(myArcGISTiledMapServiceLayer);
}

private void Map1_MouseClick(object sender, ESRI.ArcGIS.Client.Map.MouseEventArgs e)
{
  // Get the ModifierKeys that are currently depressed (options include: None, Alt, Control, Shift, Windows, and Apple)
  ModifierKeys theKey = Keyboard.Modifiers;

  // Check to ensure that only the Alt key is being depressed.
  if (theKey == ModifierKeys.Alt)
  {

    // Get the current map resolution.
    double currentResolution = Map1.Resolution;

    // Call the CenterAndZoom function which performs the work.
    // e.MapPoint is where the user clicked on the map.
    // currentResolution * 0.1 means to zoom in by a factor of 10 (the inverse of 10 is 0.1).
    CenterAndZoom(Map1, e.MapPoint, currentResolution * 0.1);
  }

}

private void CenterAndZoom(ESRI.ArcGIS.Client.Map myMap, ESRI.ArcGIS.Client.Geometry.MapPoint myMapPoint, double myResolution)
{

  // Set a default value to determine whether to 'zoom and center' or just pan.
  double ratio = 1.0;

  // Ensure that we only have a map with a non-zero Resolution in order to calculate a new ratio for re-centering.
  if (myMap.Resolution != 0.0)
  {
    // Create the ratio used to re-center the map
    ratio = myResolution / myMap.Resolution;
  }

  if (ratio == 1.0)
  {
    // Just perform a pan without zooming in.
    myMap.PanTo(myMapPoint);
  }
  else
  {
    // Get the current extent of the map.
    ESRI.ArcGIS.Client.Geometry.Envelope myEnvelope = myMap.Extent;

    // Get the current center of the maps extent.
    ESRI.ArcGIS.Client.Geometry.MapPoint centerMapPoint = myEnvelope.GetCenter();

    // Calculate the X,Y coordinates for the new map extent center.
    double X = (myMapPoint.X - ratio * centerMapPoint.X) / (1 - ratio);
    double Y = (myMapPoint.Y - ratio * centerMapPoint.Y) / (1 - ratio);
    ESRI.ArcGIS.Client.Geometry.MapPoint newMapPoint = new ESRI.ArcGIS.Client.Geometry.MapPoint(X, Y);

    // Zoom in and re-center the map.
    myMap.ZoomToResolution(myResolution, newMapPoint);
  }
}

' This example demonstrates how to zoom in and center the map when the user clicks the mouse with the Alt key
' being depressed at the same time. The map zooms in by a factor of 10 from its current map resolution.

Private Sub MainPage_Loaded(ByVal sender As Object, ByVal e As System.Windows.RoutedEventArgs) Handles Me.Loaded

  ' Clear out any existing layers.
  Map1.Layers.Clear()

  ' Add an ArcGISTiledMapsServiceLayer to the Map.
  Dim myArcGISTiledMapServiceLayer As New ESRI.ArcGIS.Client.ArcGISTiledMapServiceLayer
  myArcGISTiledMapServiceLayer.Url = "http://services.arcgisonline.com/ArcGIS/rest/services/ESRI_StreetMap_World_2D/MapServer"
  Map1.Layers.Add(myArcGISTiledMapServiceLayer)

End Sub

Private Sub Map1_MouseClick(ByVal sender As Object, ByVal e As ESRI.ArcGIS.Client.Map.MouseEventArgs) Handles Map1.MouseClick

  ' Get the ModifierKeys that are currently depressed (options include: None, Alt, Control, Shift, Windows, and Apple)
  Dim theKey As ModifierKeys = Keyboard.Modifiers

  ' Check to ensure that only the Alt key is being depressed.
  If theKey = ModifierKeys.Alt Then

    ' Get the current map resolution.
    Dim currentResolution As Double = Map1.Resolution

    ' Call the CenterAndZoom function which performs the work.
    ' e.MapPoint is where the user clicked on the map.
    ' currentResolution * 0.1 means to zoom in by a factor of 10 (the inverse of 10 is 0.1).
    CenterAndZoom(Map1, e.MapPoint, currentResolution * 0.1)
  End If

End Sub

Private Sub CenterAndZoom(ByVal myMap As ESRI.ArcGIS.Client.Map, ByVal myMapPoint As ESRI.ArcGIS.Client.Geometry.MapPoint, ByVal myResolution As Double)

  ' Set a default value to determine whether to 'zoom and center' or just pan.
  Dim ratio As Double = 1.0

  ' Ensure that we only have a map with a non-zero Resolution in order to calculate a new ratio for re-centering.
  If myMap.Resolution <> 0.0 Then
    ' Create the ratio used to re-center the map
      ratio = myResolution / myMap.Resolution
  End If

  If ratio = 1.0 Then
    ' Just perform a pan without zooming in.
    myMap.PanTo(myMapPoint)
  Else
    ' Get the current extent of the map.
    Dim myEnvelope As ESRI.ArcGIS.Client.Geometry.Envelope = myMap.Extent

    ' Get the current center of the maps extent.
    Dim centerMapPoint As ESRI.ArcGIS.Client.Geometry.MapPoint = myEnvelope.GetCenter()

    ' Calculate the X,Y coordinates for the new map extent center.
    Dim X As Double = (myMapPoint.X - ratio * centerMapPoint.X) / (1 - ratio)
    Dim Y As Double = (myMapPoint.Y - ratio * centerMapPoint.Y) / (1 - ratio)
    Dim newMapPoint As ESRI.ArcGIS.Client.Geometry.MapPoint = New ESRI.ArcGIS.Client.Geometry.MapPoint(X, Y)

    ' Zoom in and re-center the map.
    myMap.ZoomToResolution(myResolution, newMapPoint)
  End If

End Sub
